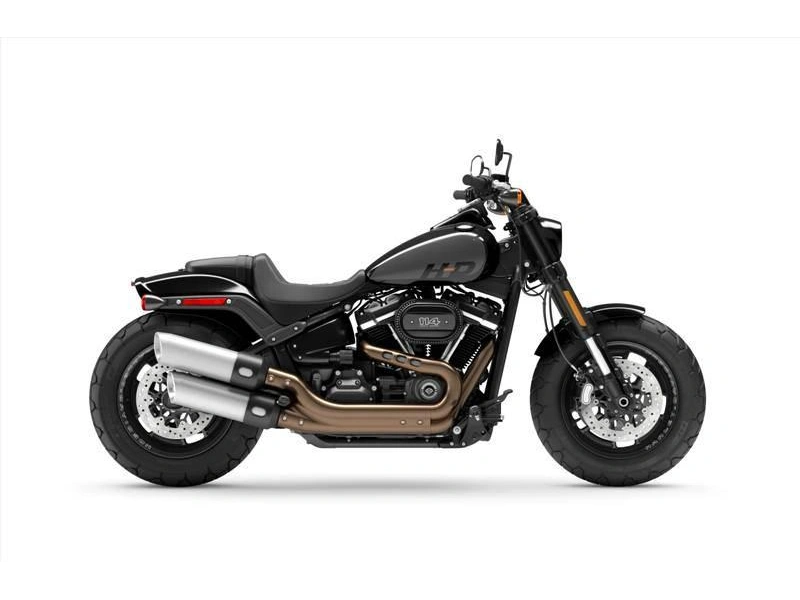

2023 Harley-Davidson SOFTAIL FAT BOB 114

A street-eater with an appetite for power. Built with muscular style and performance.

Overview

• Renegades seeking the utmost power and performance

• Conquering city streets with power and agility

• Milwaukee-Eight 114 V-Twin engine and custom-styled exhaust

Dimensions* Length: 92.1 in.
* Seat Height, Laden: 27.7 in.
* Ground Clearance: 4.7 in.
* Rake: 28
* Trail: 5.2 in.
* Wheelbase: 63.6 in.
* Tires, Front Specification: 150/80-16,71H,BW
* Tires, Rear Specification: 180/70B16,77H,BW
* Tire, Type: Dunlop Harley-Davidson Series, bias blackwall front and rear
* Fuel Capacity: 3.5 gal.
* Oil Capacity (W/Filter): 5 qt.
* Weight, As Shipped: 653 lb.

Engine* Engine: Milwaukee-Eight 114
* Bore: 4.016 in.
* Stroke: 4.5 in.
* Displacement: 114 cu in
* Compression Ratio: 10.5:1
* Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)
* Exhaust: 2-into-2 shorty dual; catalyst in muffler

Performance* Engine Torque Testing Method: J1349
* Engine Torque: 118 ft-lb
* Engine Torque (Rpm): 3500
* Lean Angle, Right (Deg.): 31
* Lean Angle, Left (Deg.): 32
* Fuel Economy Testing Method: Estimated City/Hwy
* Fuel Economy: 47 mpg

Drive Train* Primary Drive: Chain, 34/46 ratio
* Gear Ratios (Overall) 1st: 9.311
* Gear Ratios (Overall) 2nd: 6.454
* Gear Ratios (Overall) 3rd: 4.793
* Gear Ratios (Overall) 4th: 3.882
* Gear Ratios (Overall) 5th: 3.307
* Gear Ratios (Overall) 6th: 2.79

Chassis* Front Fork: Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
* Rear Shocks: Hidden, free piston, coil-over monoshock; 56mm stroke; toolless hydraulic preload adjustment
* Wheels, Front Type: Denim black, Structure cast aluminum with laser etched graphics
* Wheels, Rear Type: Denim black, Structure cast aluminum with laser etched graphics
* Brakes, Type: Front and rear black, Split 7-spoke floating rotors
* Brakes, Caliper Type: 4-piston fixed front and 2-piston floating rear

Electric* Lights (As Per Country Regulation), Headlamp, Tail/Stop/Front Signal Lights: All LED, low beam, high beam and signature position lamp, Incandescent bullets
* Gauges: 4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication

Key Features* Dual Disc Front Brakes: These high-performance dual disc brakes help you keep all that power in check when you need to.
* Race-Style Fork Technology: Inverted race-style front fork design, with single-cartridge technology that improves response to steering input and braking and handling performance.
* 2-1-2 Exhaust: Performance-inspired, upswept exhaust with a custom contrast finish.
* Milwaukee-Eight® 114: Loads of torque for on-demand power you can feel with each twist, along with the familiar H-D sound.
* Electronic Cruise Control: For long-distance runs, there's nothing better than letting your bike do all the work. Cruise Control puts you just minutes away from true riding bliss.
